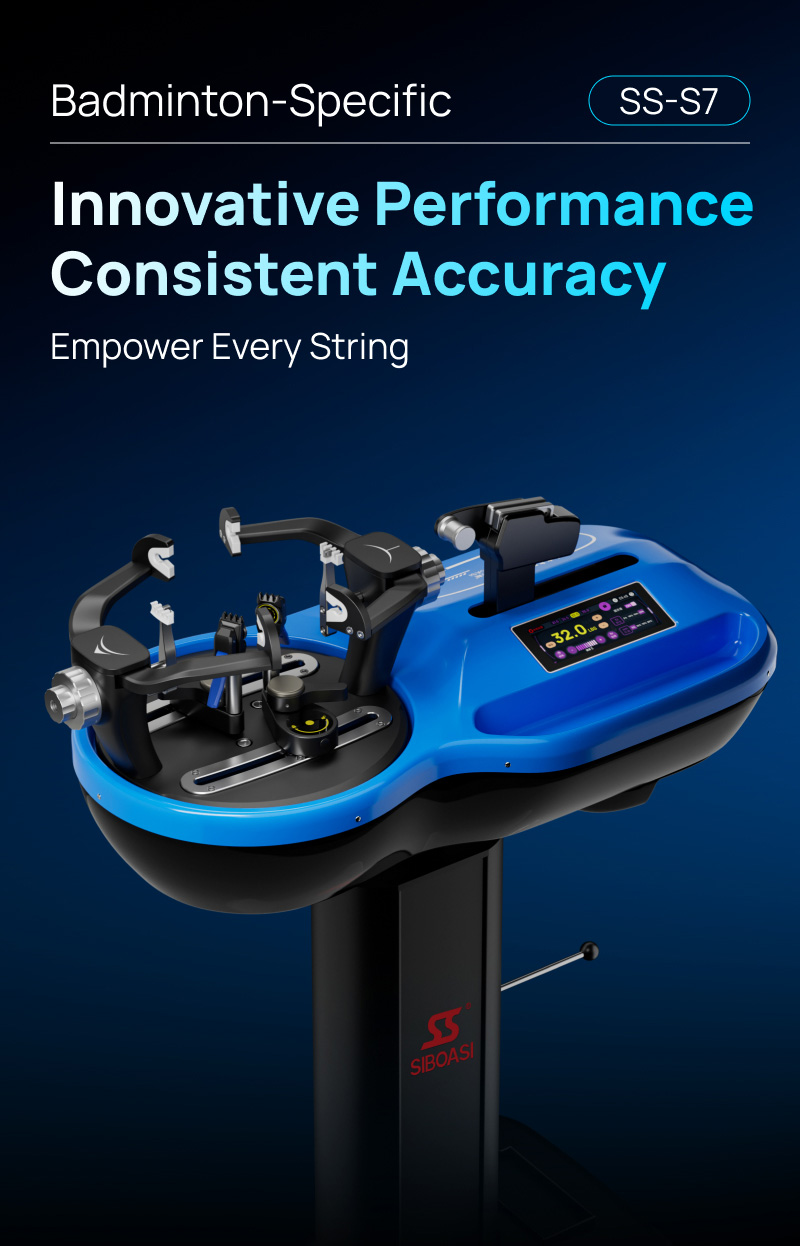

SIBOASI badminton racket stringing machine S7
Product Highlights:
Product Highlights:

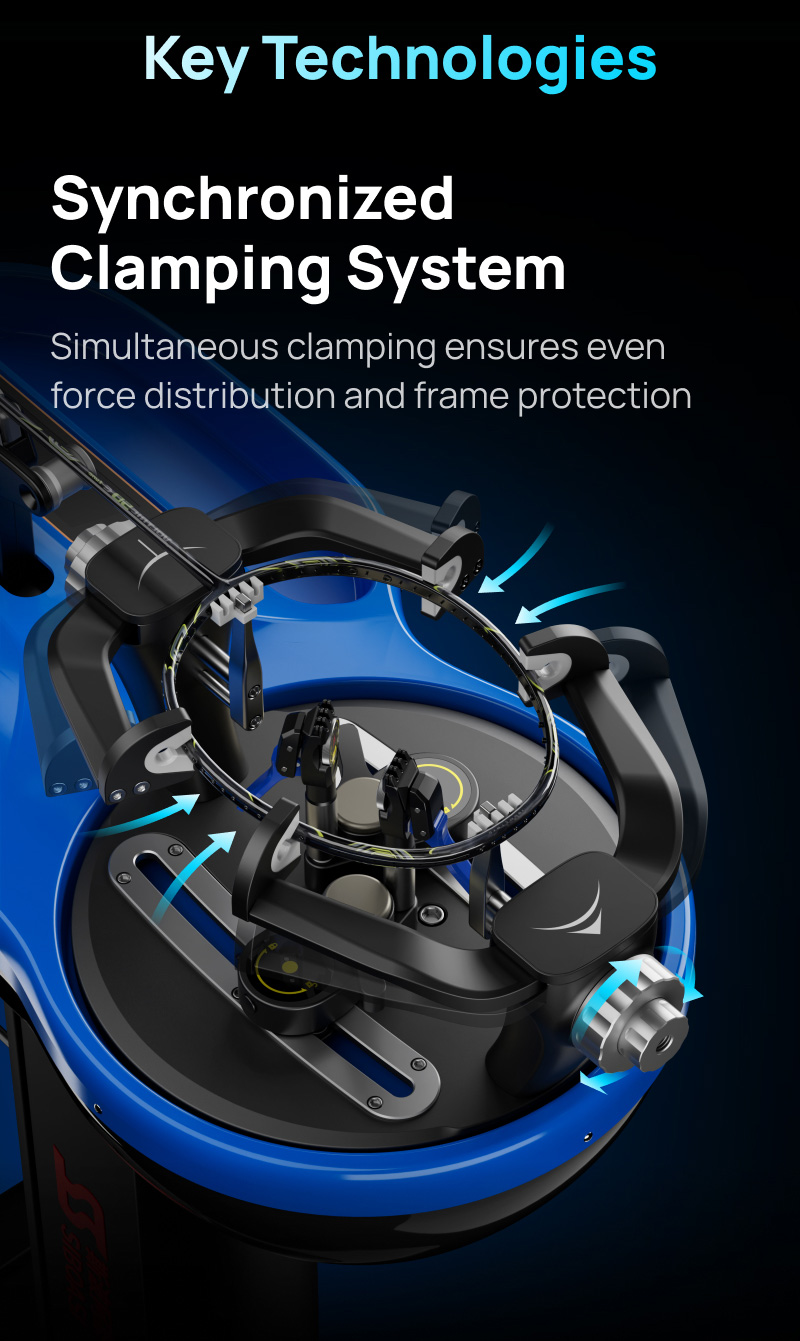

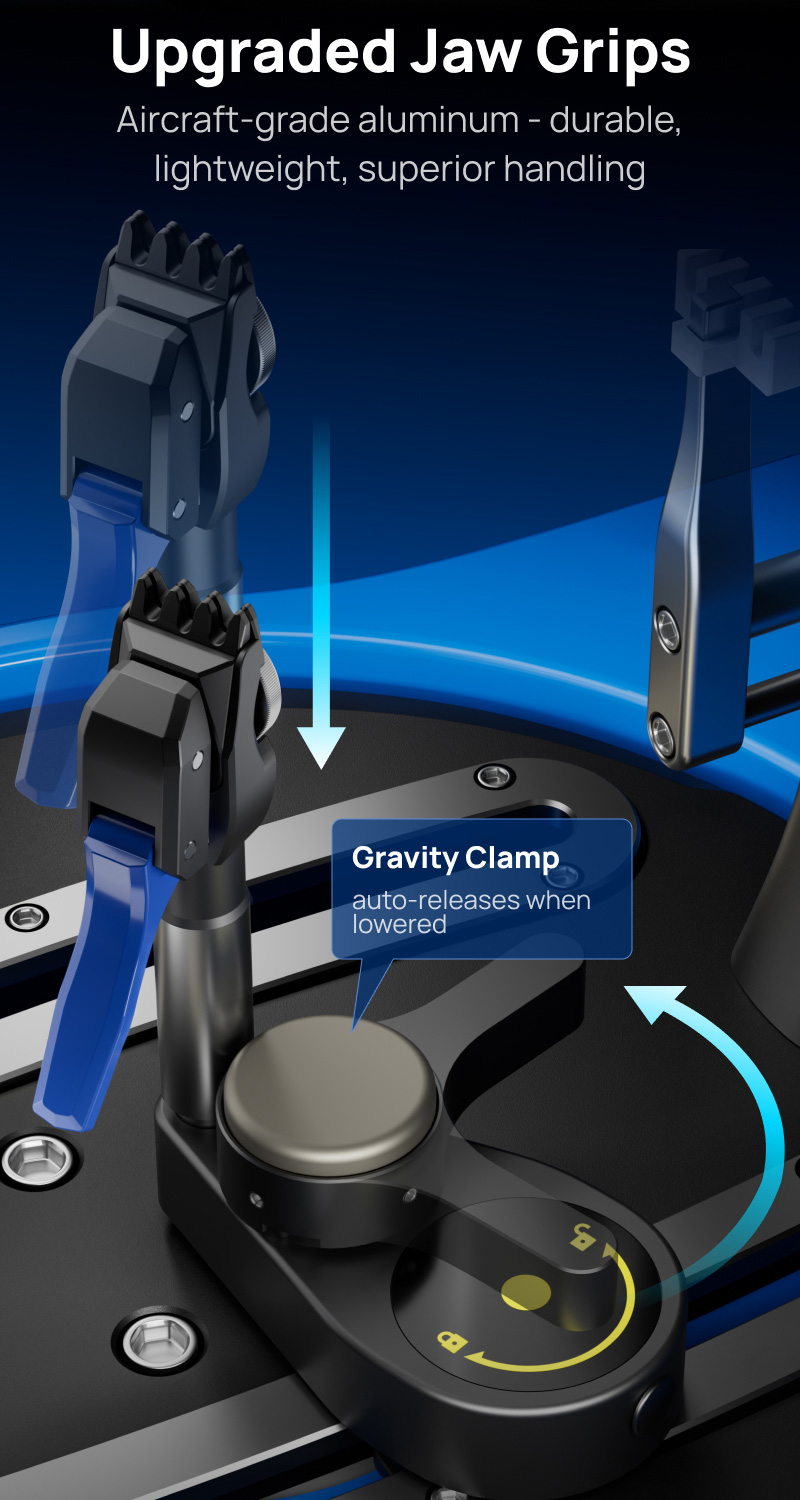

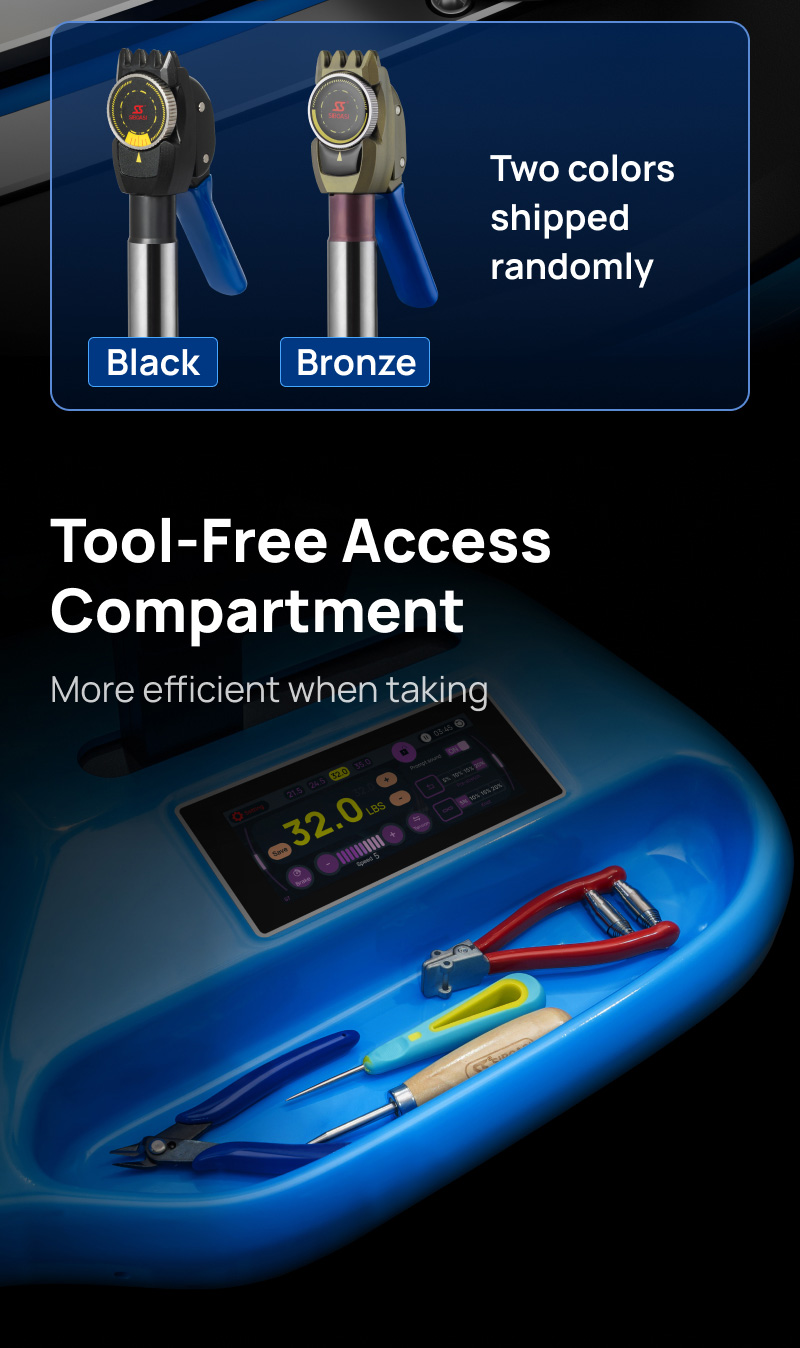

1. Collet-Type Four-teeth Clamps;

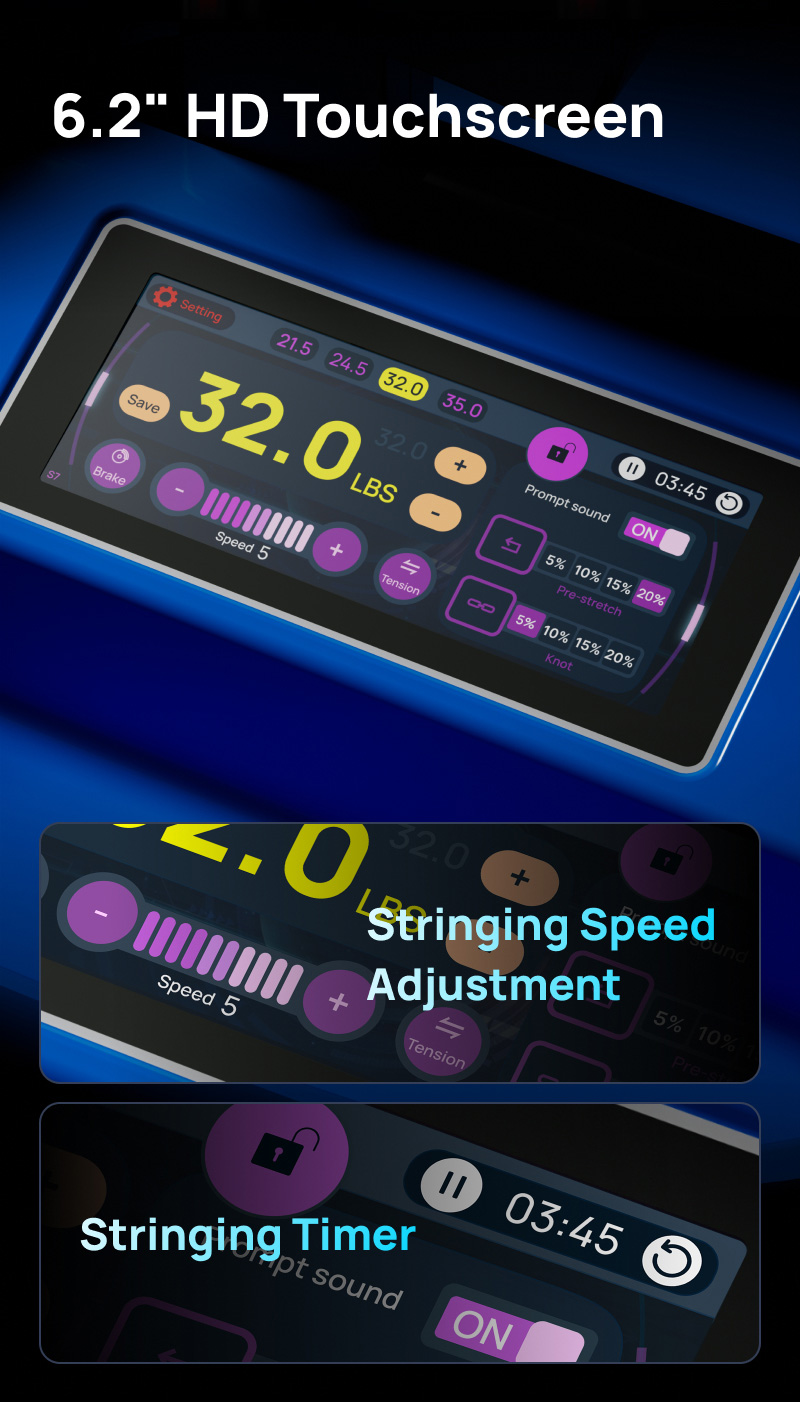

2. 6.2-inch HD touch LCD operation screen;

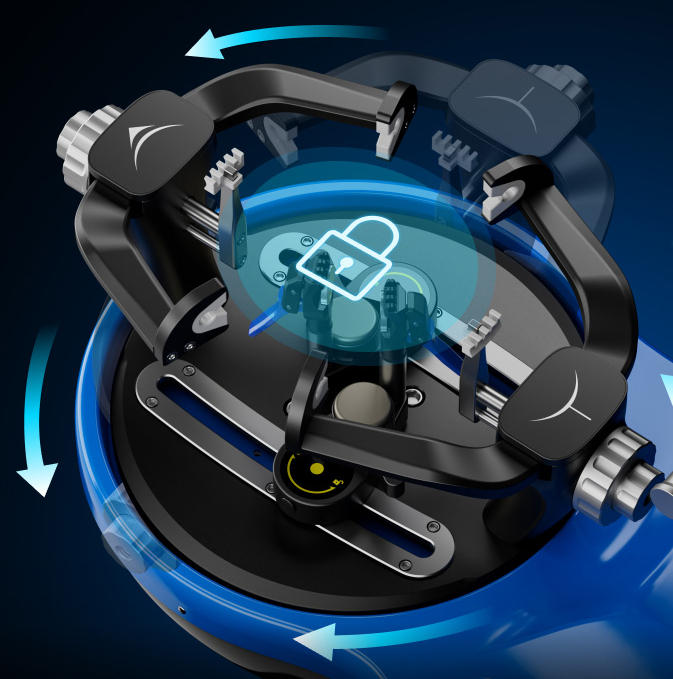

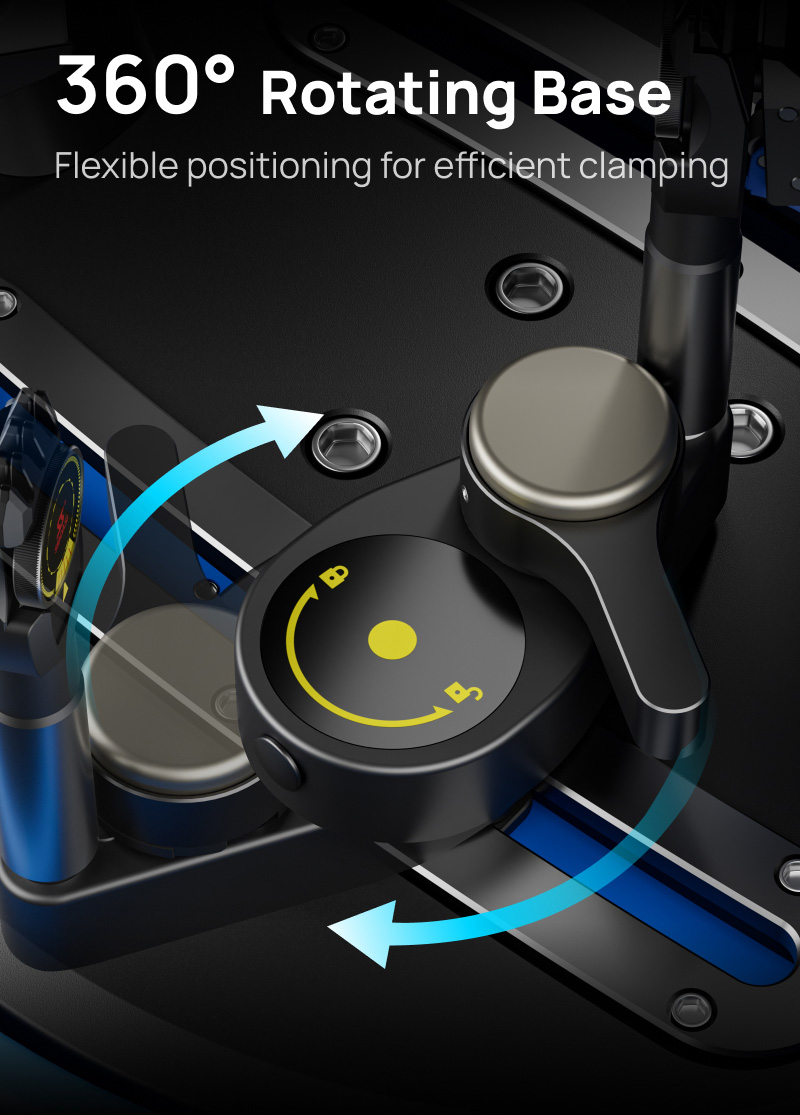

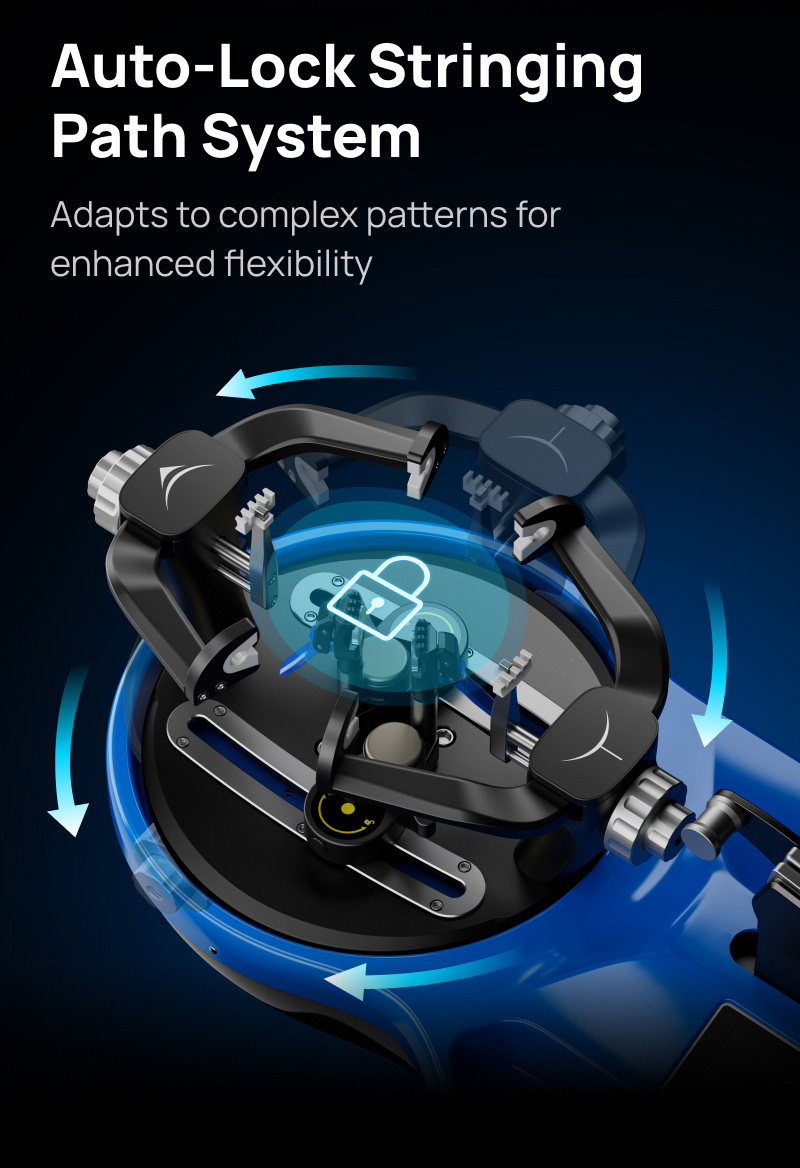

3. Intelligent Auto-Locking Turntable system,improve stringing efficiency;

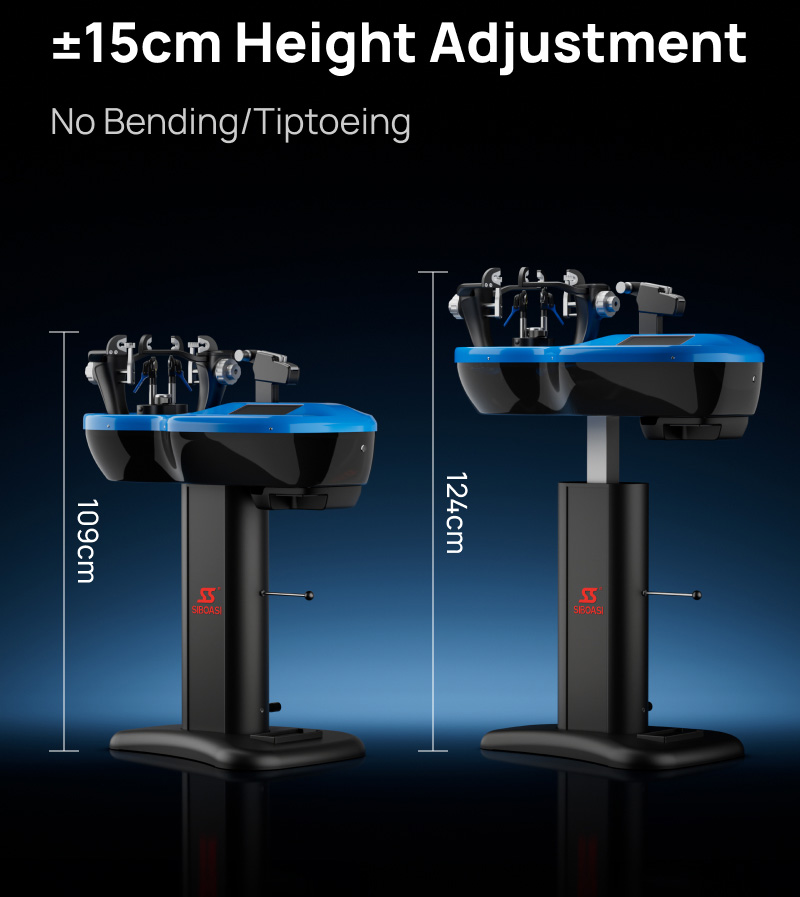

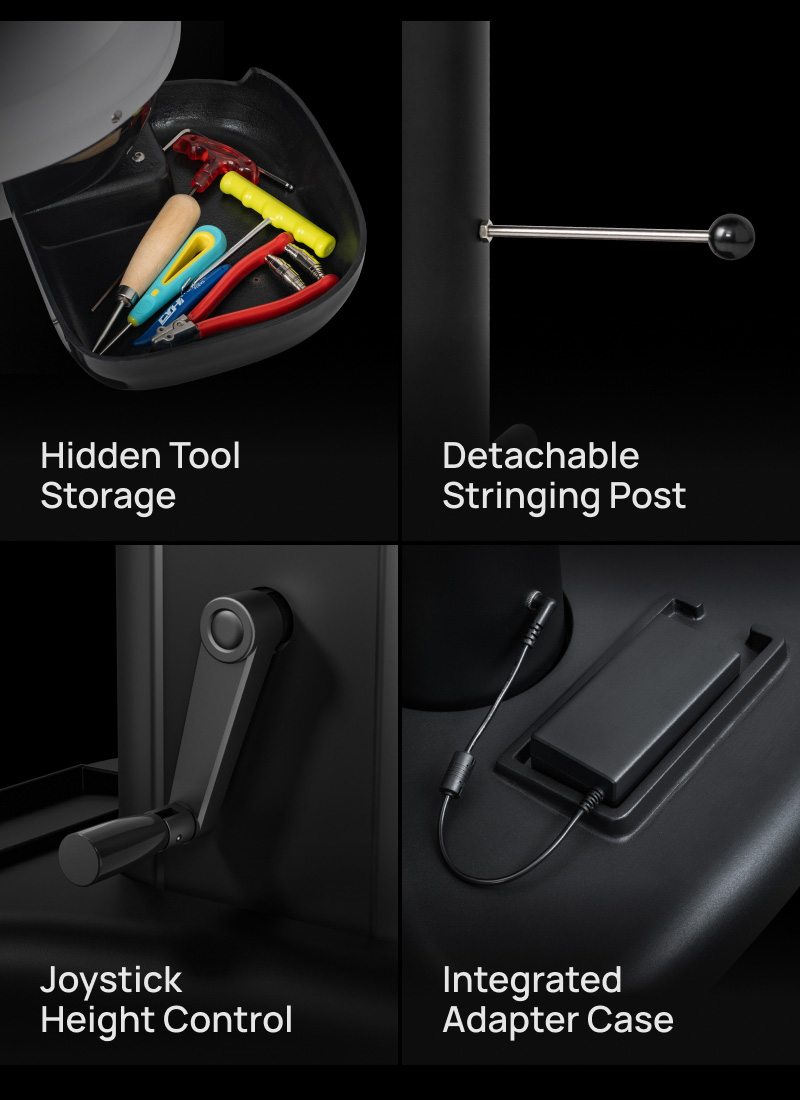

4. Ergonomic Height-Adjustable Workstation.
Product Parameters:
1. Voltage: AC 100-240V
2. Power: 50W
3. Suitable for: Badminton rackets

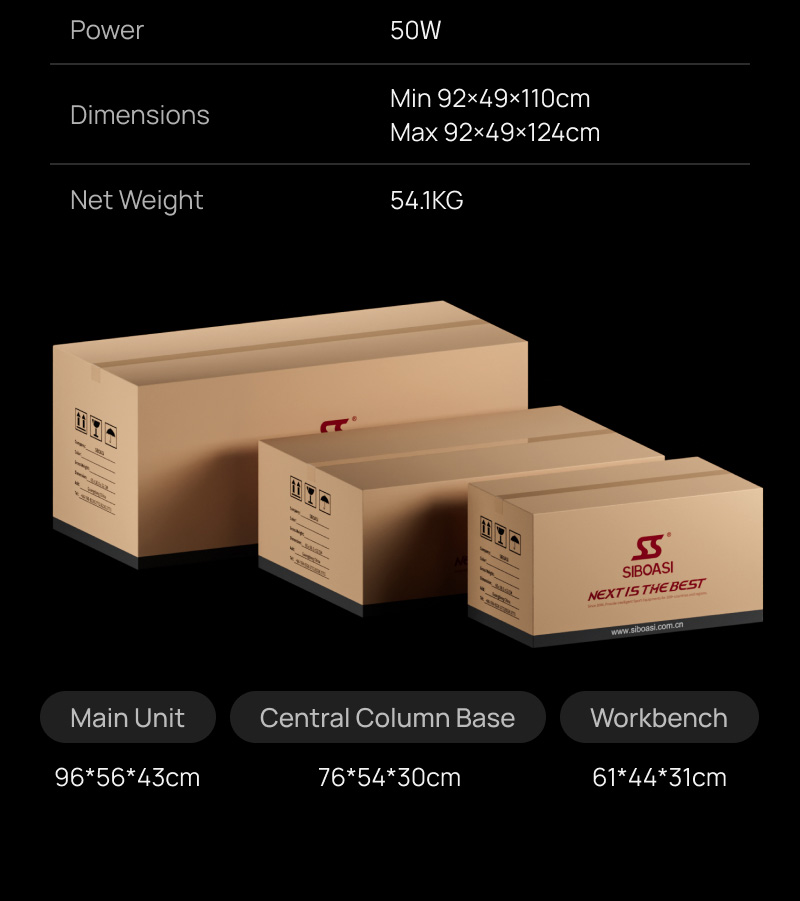

4. Net weight: 54.1KG
5. Size: 91.9x49.1x109-124cm
Mastering Precision: Daily Calibration of SIBOASI Badminton Racket Stringing Machines
In the realm of badminton equipment maintenance, the adage "trust, but verify" is paramount. For a technician using a SIBOASI computerized stringing machine, daily calibration is the ritual that separates a professional setup from an amateur one. Even the most advanced constant tension system requires verification to ensure that the digital reading matches the physical reality of the string bed.
The most critical aspect of daily calibration is verifying the tension accuracy using an external reference. While SIBOASI machines are equipped with high-precision sensors and automatic tension correction algorithms, mechanical variables can shift over time. To perform this check, a technician should use a calibrated digital hanging scale. The process involves securing a string in the machine's clamps and attaching the scale to the string's end. When the SIBOASI machine pulls to the target weight—for instance, 26 lbs—the technician observes the reading on the external scale. If the machine displays 26 lbs but the scale reads 25 lbs, the system is under-tensioned.
Fortunately, SIBOASI’s intelligent design allows for immediate rectification. The user can access the machine's internal calibration settings to adjust the output values. This "closed-loop" verification ensures that the machine's internal sensors are perfectly aligned with standard weights. This step is vital because a discrepancy of even 1 lb can significantly alter the feel and performance of the racket for a professional player.
Beyond tension, the physical components require daily inspection. The clamps, which hold the string under immense pressure, must be checked for wear and debris. A simple "marker test" or checking for string slippage after a pull can indicate if the clamp teeth need cleaning or adjustment. Additionally, the linear guides and moving parts of the tension head should be inspected to ensure smooth operation, as friction can impede the machine's ability to reach the target tension efficiently.
By rigorously performing these daily calibration steps, a technician ensures that the SIBOASI machine operates not just as a tool, but as an extension of their own expertise, delivering consistent, tournament-grade results every time.
